Accessing WISeREP Spectra from OTTER#
Since OTTER currently does not store spectra, we have setup a nice utility in the Python API for scraping WISeREP for spectra.
[1]:
from otter import Otter
from otter.io.data_finder import DataFinder
import matplotlib.pyplot as plt
from astropy.time import Time
db = Otter()
Attempting to login to https://otter.idies.jhu.edu/api with the following credentials:
username: user-guest
password: test
For an existing transient in OTTER#
For an existing transient in OTTER, we can use the Transient.get_wiserep_spec method. Here is an example for the TDE 2022cmc. The key is that the get_wiserep_spec method returns a metadata dataframe and a dictionary of dataframes, where the keys of the dictionary correspond to the indices of the metadata dataframe.
[2]:
t = db.get_meta(names="2022cmc")[0]
spec_meta, spec = t.get_wiserep_spec()
spec_meta
www.wiserep.org/system/files/uploaded/general/2022cmc_2022-02-15_NOT_ALFOSC_None.fits
[2]:
| Spec. ID | Obj. ID | Obj. IAU Name | Obj. Alt. Name/s | Obj Family Type | Obj Type | Redshift | Obs-date (UT) | Phase/s | Tel / Inst | ... | Public | End Prop. Period | Reporter/s | Publish | Contrib | Remarks | Created by | Creation date (UT) | Modified by | Last modified date (UT) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 68078 | 21988 | TDE 2022cmc | ZTF22aaajecp | Nuclear | TDE | 1.19325 | 2022-02-15 00:00:00.00 | NaN | NOT / ALFOSC | ... | Y | NaN | 0.0 | NaN | NaN | NaN | Igor Andreoni | 2022-11-08 21:57:59 | Igor Andreoni | 2022-11-08 21:57:59 |
| 1 | 68113 | 21988 | TDE 2022cmc | ZTF22aaajecp | Nuclear | TDE | 1.19325 | 2022-02-15 00:00:00.00 | NaN | Gemini-N / GMOS | ... | Y | NaN | NaN | NaN | NaN | NaN | Igor Andreoni | 2022-11-12 23:46:32 | Igor Andreoni | 2022-11-12 23:46:32 |
| 2 | 68114 | 21988 | TDE 2022cmc | ZTF22aaajecp | Nuclear | TDE | 1.19325 | 2022-02-17 00:00:00.00 | NaN | VLT-UT2 / X-Shooter | ... | Y | NaN | NaN | NaN | NaN | NaN | Igor Andreoni | 2022-11-12 23:46:32 | Igor Andreoni | 2022-11-12 23:46:32 |
| 3 | 68115 | 21988 | TDE 2022cmc | ZTF22aaajecp | Nuclear | TDE | 1.19325 | 2022-02-17 00:00:00.00 | NaN | Keck2 / DEIMOS | ... | Y | NaN | NaN | NaN | NaN | NaN | Igor Andreoni | 2022-11-12 23:46:32 | Igor Andreoni | 2022-11-12 23:46:32 |
| 4 | 68116 | 21988 | TDE 2022cmc | ZTF22aaajecp | Nuclear | TDE | 1.19325 | 2022-02-25 00:00:00.00 | NaN | Keck1 / LRIS | ... | Y | NaN | NaN | NaN | NaN | NaN | Igor Andreoni | 2022-11-12 23:46:32 | Igor Andreoni | 2022-11-12 23:46:32 |
| 5 | 68117 | 21988 | TDE 2022cmc | ZTF22aaajecp | Nuclear | TDE | 1.19325 | 2022-03-03 00:00:00.00 | NaN | Keck1 / LRIS | ... | Y | NaN | NaN | NaN | NaN | NaN | Igor Andreoni | 2022-11-12 23:46:32 | Igor Andreoni | 2022-11-12 23:46:32 |
6 rows × 33 columns
[3]:
spec
[3]:
{0: wave flux
0 3801.161658 3.959880e-17
1 3804.115984 2.544269e-17
2 3807.072119 2.043800e-17
3 3810.029589 2.072174e-17
4 3812.988989 1.325344e-17
... ... ...
1662 9699.843745 1.255609e-17
1663 9703.774357 4.597480e-18
1664 9707.707839 1.413910e-17
1665 9711.637756 -4.758937e-19
1666 9715.573435 7.614728e-18
[1667 rows x 2 columns],
1: wave flux
0 3780.9 -9.542200e-15
1 3782.0 -1.088000e-14
2 3783.0 -3.540400e-15
3 3784.0 1.319200e-14
4 3785.0 -2.100300e-14
... ... ...
4645 9592.8 NaN
4646 9594.3 NaN
4647 9595.9 NaN
4648 9597.4 NaN
4649 9598.9 NaN
[4650 rows x 2 columns],
2: wave flux
0 322.92 2.719830e-17
1 322.94 1.179679e-17
2 322.96 2.934156e-17
3 322.98 -1.145425e-17
4 323.00 1.024262e-17
... ... ...
34763 1019.92 6.300985e-18
34764 1019.94 5.903712e-18
34765 1019.96 1.943250e-18
34766 1019.98 4.499430e-18
34767 1020.00 7.878644e-18
[34768 rows x 2 columns],
3: wave flux
0 5249.344001 0.746064
1 5249.889949 1.554495
2 5250.423940 0.559941
3 5250.904266 0.260234
4 5251.322104 0.444431
... ... ...
8165 8775.021807 0.388649
8166 8775.440147 0.447369
8167 8775.863725 0.743812
8168 8776.284496 1.129127
8169 8776.704016 0.293823
[8170 rows x 2 columns],
4: wave flux
0 3137.8279 -2.374370e-17
1 3138.9409 1.227490e-16
2 3140.0540 -4.633770e-17
3 3141.1675 8.103950e-17
4 3142.2810 1.314770e-16
... ... ...
5968 10291.2710 -3.391160e-18
5969 10292.4520 1.051670e-17
5970 10293.6340 1.424370e-17
5971 10294.8160 -1.011810e-18
5972 10295.9970 -4.419770e-18
[5973 rows x 2 columns],
5: wave flux
0 3061.2788 3.774020e-17
1 3063.2290 4.144230e-17
2 3065.1797 -1.860350e-17
3 3067.1311 5.295430e-17
4 3069.0830 -8.135830e-18
... ... ...
5121 10291.4500 -1.628210e-19
5122 10292.6330 -3.443930e-18
5123 10293.8160 1.292440e-18
5124 10295.0000 3.699810e-18
5125 10296.1830 1.343260e-18
[5126 rows x 2 columns]}

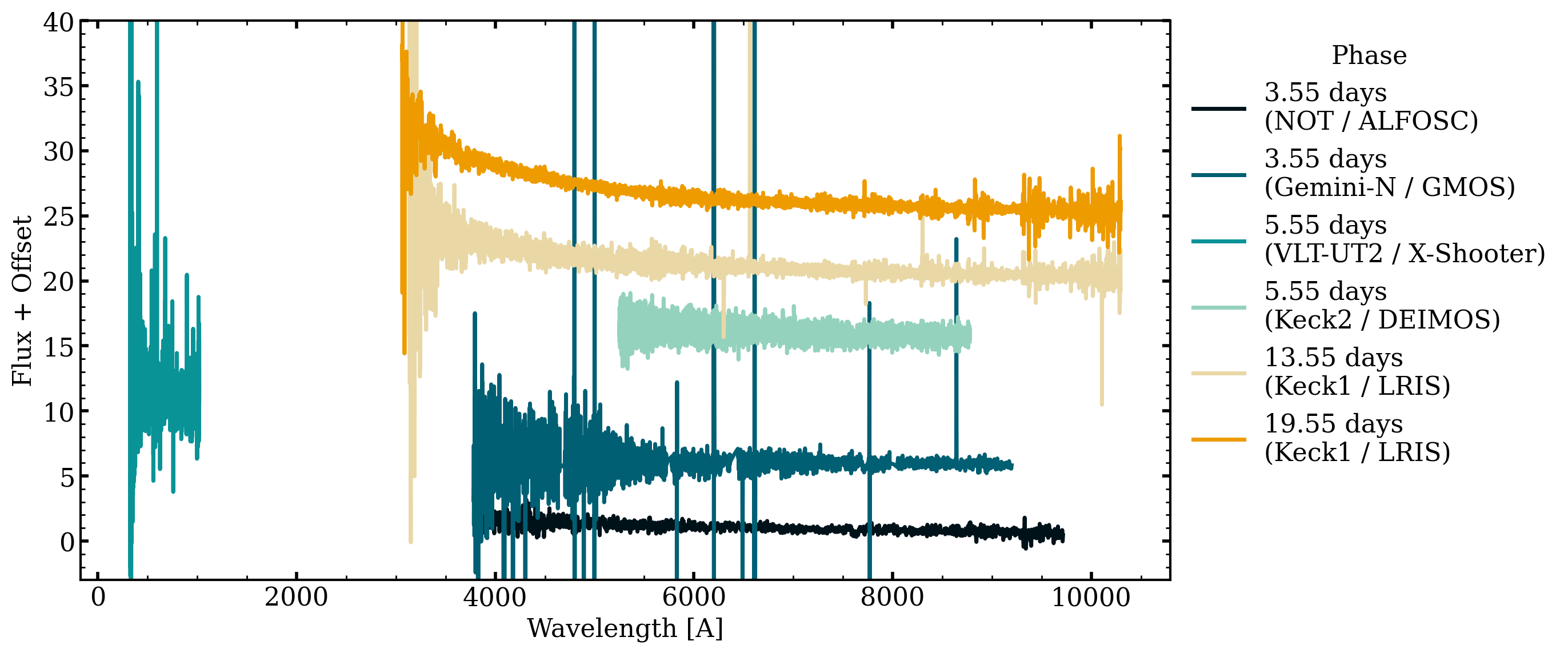

Then we can plot all of the spectra, normalized to the median.
[4]:
# get the 22cmc discovery date
disc_date = t.get_discovery_date().mjd
# sort the metadata dataframe by the date
spec_meta["phase"] = [Time(d).mjd-disc_date for d in spec_meta["Obs-date (UT)"]]
spec_meta = spec_meta.sort_values("phase")
# then plot
fig, ax = plt.subplots(figsize=(14, 6))
for offset, (idx,row) in enumerate(spec_meta.iterrows()):
spec_df = spec[idx]
norm = spec_df.flux.median()
ax.plot(spec_df.wave, (spec_df.flux/norm)+5*offset, marker="none", label=f"{row.phase:.2f} days\n({row['Tel / Inst']})")
ax.set_ylim(-3, 40)
ax.legend(title="Phase", bbox_to_anchor=(1,1), loc="upper left")
ax.set_ylabel("Flux + Offset")
ax.set_xlabel("Wavelength [A]")
[4]:
Text(0.5, 0, 'Wavelength [A]')
Querying WISeREP for transients not in OTTER#
The Transient.get_wiserep_spec method is just a wrapper on the DataFinder.query_wiserep method, so we can use that for a transient not currently in OTTER. As an example, consider the Type IIb supernova SN 2025ulz.
[5]:
datafinder = DataFinder(
ra = 237.9758159,
dec = +30.9023752,
ra_units = "deg",
dec_units = "deg",
name = "2025ulz" # this should be the IAU Name! Otherwise you'll get an error
)
datafinder.query_wiserep()
[5]:
( Spec. ID Obj. ID Obj. IAU Name Obj. Alt. Name/s Obj Family Type \
0 87945 28864 SN 2025ulz ZTF25abjmnps, SN2025ulz SN
1 88934 28864 SN 2025ulz ZTF25abjmnps, SN2025ulz SN
Obj Type Redshift Obs-date (UT) Phase/s Tel / Inst ... \
0 SN II 0.0848 2025-08-24 00:03:40.00 NaN VLT-UT4 / MUSE ...
1 SN II 0.0848 2025-08-30 02:32:55.00 NaN MMT / BINOSPEC ...
Public End Prop. Period Reporter/s Publish Contrib \
0 Y NaN NaN NaN NaN
1 Y NaN 0.0 NaN NaN
Remarks Created by Creation date (UT) \
0 [TNS reporting group: 120 - ENGRAVE ] TNS_Bot1 2025-08-25 08:30:06
1 NaN Noah Franz 2025-10-26 18:51:24
Modified by Last modified date (UT)
0 TNS_Bot1 2025-11-06 11:25:14
1 Noah Franz 2025-10-26 18:51:24
[2 rows x 33 columns],
{0: wave flux
0 4749.707031 581.415169
1 4750.957031 318.839276
2 4752.207031 193.009335
3 4753.457031 265.674106
4 4754.707031 217.658655
... ... ...
3676 9344.707031 271.874223
3677 9345.957031 220.513021
3678 9347.207031 260.432850
3679 9348.457031 342.568351
3680 9349.707031 185.953972
[3681 rows x 2 columns],
1: wave flux
0 4132.941538 4.235324e-18
1 4134.228611 4.460402e-18
2 4138.089866 4.030505e-18
3 4139.376997 4.041083e-18
4 4144.525670 4.095643e-18
... ... ...
3777 9229.219681 4.047658e-18
3778 9230.565896 4.214537e-18
3779 9231.911943 4.655273e-18
3780 9234.604301 4.232006e-18
3781 9238.642963 4.024085e-18
[3782 rows x 2 columns]})
[ ]:
